Sapphire AR Low-E™
By combining Anti-Reflective coating with Low-e, we have created the lowest reflection % in combination with lowest U value of any glass on the market. This makes the glass virtually invisible and also energy efficient. We have also added qualities such as a smooth surface for much easier handling, processing and temperability.
THIS SAPPHIRE PRODUCT HAS THE FOLLOWING FEATURES AND BENEFITS:
- NO REFLECTION
- IMPROVED TRANSMISSION
- EASY TO ADAPT
- CAN BE BENT AND TEMPERED
- ABRASION RESISTANT AND EASY TO CLEAN
- HIGH DURABILITY AND LONG LIFETIME OF THE COATING
TECHNICAL INFORMATION
Substrate | Thickness, mm | Maximum Size, mm | Light Transmission | Light Reflection (per side) |
Hard Low-E | 4 or 6 | 2250×3210 | ~93% | ~0.6% |
DOUBLE GLAZED UNIT – FOR EVEN BETTER U-VALUE
Glass type | Structure | Light reflection | Light Transmission | U-Value | Post temperable | Scratch resistant |
Sapphire AR Low-E™ DGU (1 pane with Low-E) | ![]() |
1.1 | 92% | 1.7 | Yes | Yes |
Sapphire AR Low-E™ DGU (2 pane with Low-E) | ![]() |
1.8 | 86% | 1.4 | Yes | Yes |
For other glass thickness please contact us at sales@groglass.com
For additional technical documentation please follow this link http://www.groglass.com/documents
Applications
- Frozen Food Display Cabinets
- Full Glass Door Cabinets
- Integral Cabinets

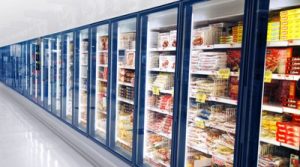

Application example:
